ECOHOOD
AFFORDABLE LABORATORY FUME HOOD

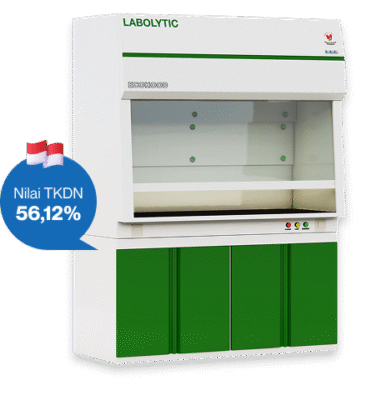

ECOHOOD
Affordable Laboratory Fume Hood with Best Quality
ECOHOOD (Economic Fume Hood) is our cost-effective fume hood solution, designed to meet essential safety standards without compromising on quality.
Despite being a budget-friendly option, ECOHOOD adheres to rigorous safety regulations and is constructed using explosion-resistant, fire-retardant, and chemical-resistant materials — suitable for handling acids, bases, and organic compounds.
Ideal for schools, universities, research laboratories, and other scientific facilities, ECOHOOD delivers reliable protection and performance.
Proudly certified with a TKDN (Local Content Value) of 56.12%, ECOHOOD supports the use of domestic components in scientific infrastructure.
Interior Design
Constructed using 8 mm thick Polypropylene, offering excellent resistance to most chemicals.
Lighting: Energy-efficient LED lamp
Water faucet (optional)
Sink cup / drip cup (optional)
Top table: 16 mm Chemical-Resistant Phenolic Resin
Exterior Design
Designed using 1.2 mm thick electro-galvanized steel, coated and protected with epoxy-modified polyester powder coating for enhanced durability and chemical resistance.
Electrical socket (optional)
Water valve (optional)
Gas valve (optional)
Sash made of 6 mm tempered glass or acrylic, depending on user requirements.
Internal Scrubber
An automated design that controls the entire process — from filling the scrubber tank with water to draining it once saturated — all monitored automatically via a level indicator, pH indicator, and timer.
The level indicator utilizes a non-contact proximity switch, ensuring safe operation without direct exposure to chemicals in the water.
Equipped with a chemical-resistant magnetic pump for reliable performance in harsh laboratory environments.

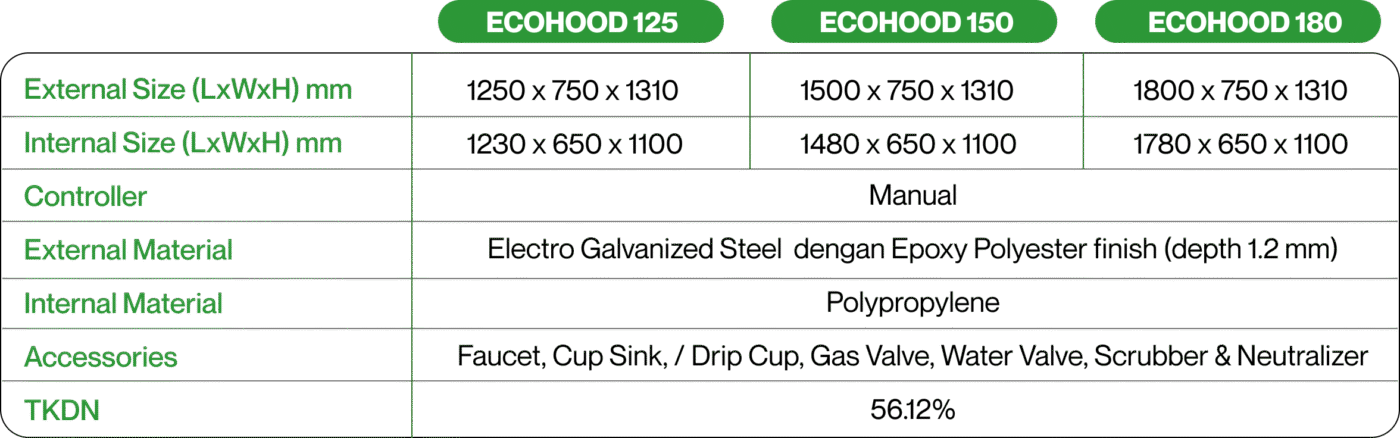

ECOHOOD Dimensions
